For US commercial low voltage contractors
Low voltage scope often spans several drawing sets and responsibility notes. A revised outlet, door interface or equipment schedule can affect what your team supplies, installs, terminates or tests.
RevisionSignal supports your judgment. It may miss changes, and a finding still needs your review.
Early Access starts in Shadow Review. Verify findings against the source and continue your normal review process.
Describe your workflow in the access request. Leave out confidential drawings, specifications, and bid details.
Before sharing live files, confirm who can access them, which providers process them, and the retention and deletion terms.
A real Low Voltage bid example
St. Charles Rec and Senior Center
Office 115 floor-box data outlet
Addendum D · April 10, 2026
Manually reviewed example

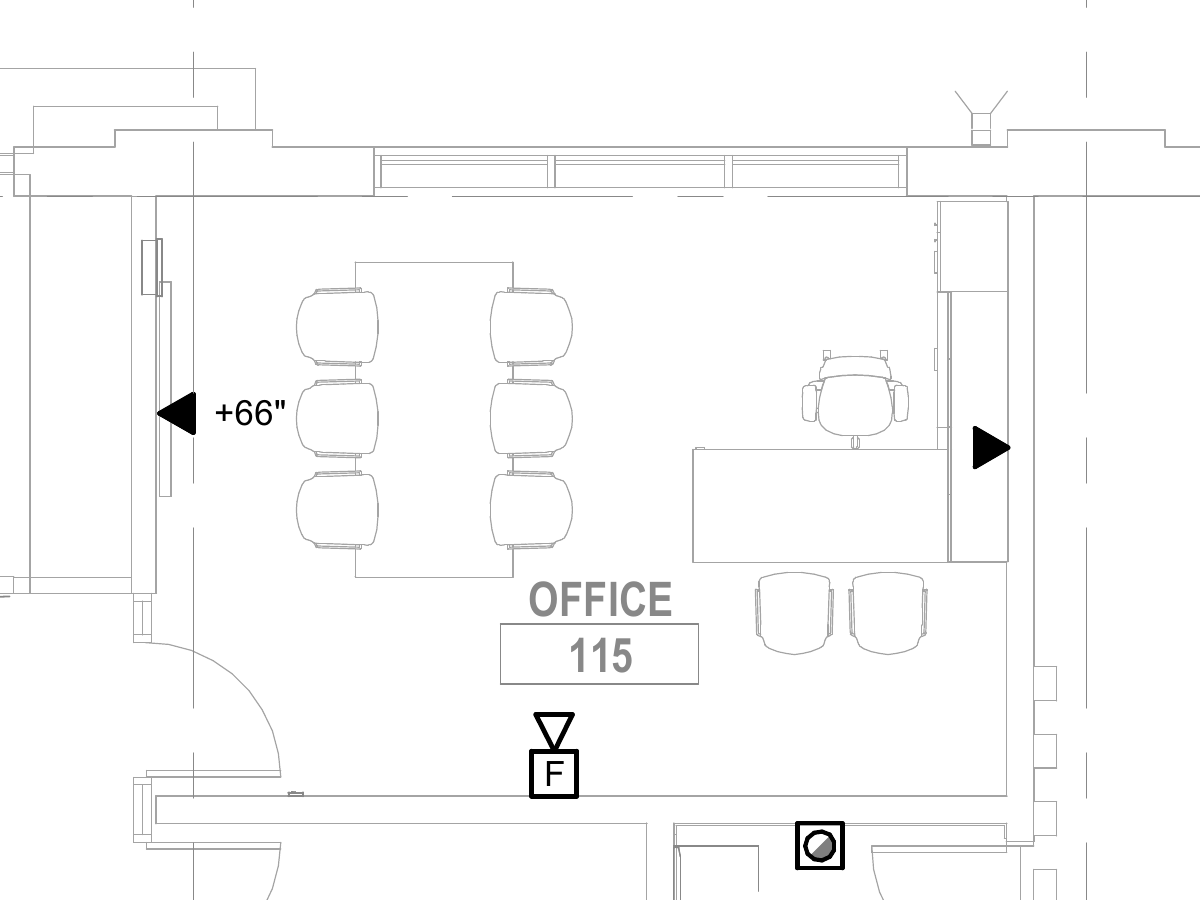

Before · Addendum BT101
Wall data outlets are shown; no data symbol at the conference table.

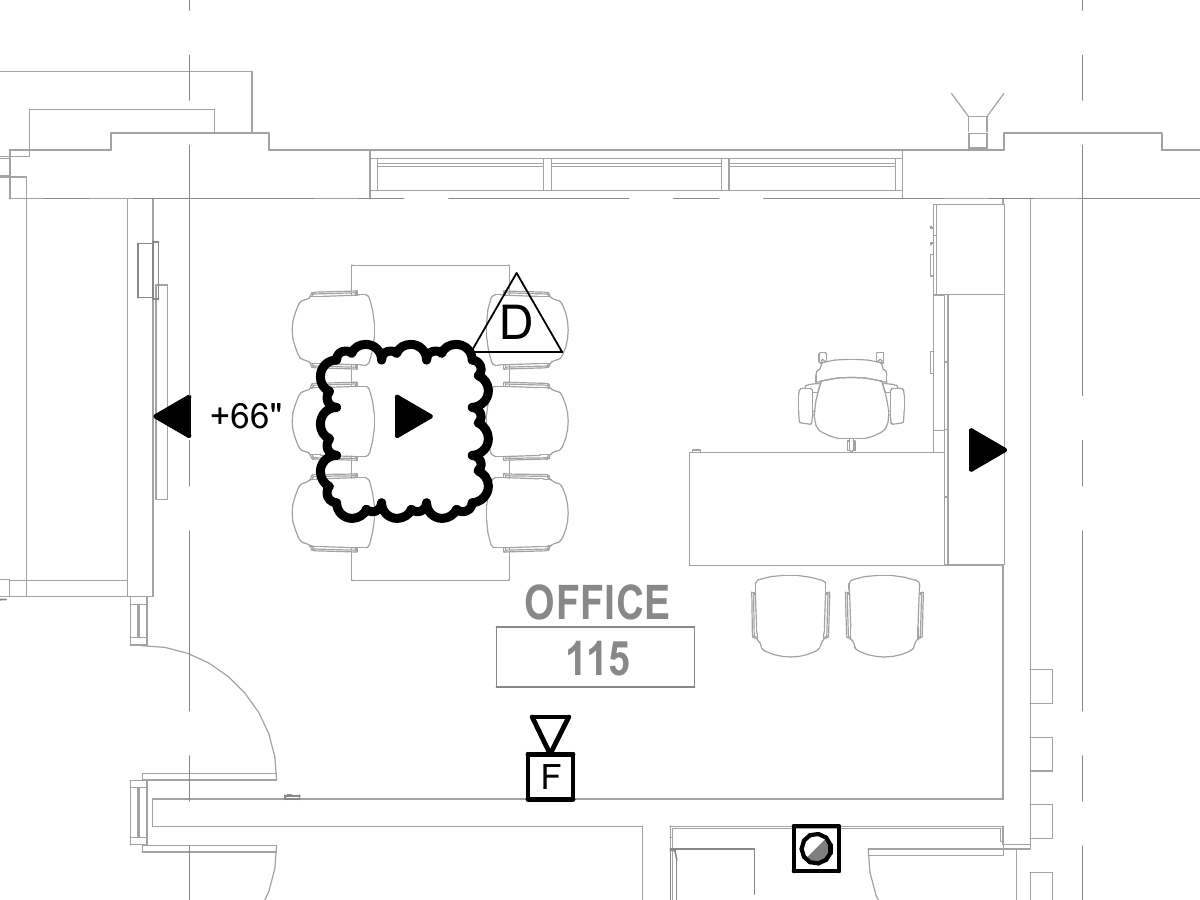

Before PDF · page 21 (opens in a new tab)After · Addendum DT101
Data is now shown at the floor box, inside the original revision cloud.
After PDF · page 37 (opens in a new tab)Red outline: selected change. Dashed outline: corresponding area before the change. The filled triangle is a data outlet. The black revision cloud and D tag belong to the source drawing.
What changed
A data-outlet symbol is added at the conference table. Addendum D identifies it as data at the Office 115 floor box.
Why it may matter
A low-voltage takeoff based on the earlier sheet can miss the floor-box data connection and its cable run.
What to review
Recheck the floor-box data connection, cable quantity, pathway, and coordination with the electrical floor-box scope. The sheet directs data cabling to IT Room 127.
One manually reviewed change. Not an automated product result or a complete list of addendum changes.
Unaltered source crops · City of St. Charles bid archive (opens in a new tab) · Drawings © 2024 JEMA; G&W Engineering.
Low Voltage review scenarios
These scenarios describe the review workflow we are developing. They are not automated findings or a statement of currently supported detection coverage.
Changed outlet locations, cable requirements or pathway notes can alter takeoff and installation assumptions.
Review in context
Compare outlet schedules, cable specifications and pathway responsibilities before updating quantities.
A revised camera, reader or door interface may change devices, cabling and coordination requirements.
Review in context
Read device schedules and door or interface details together, including work assigned to hardware and electrical contractors.
An equipment or scope-note revision can change who supplies, installs, programs or tests part of a system.
Review in context
Check the equipment schedule and responsibility notes; a new item is not necessarily part of your contract.
Gather the telecommunications, security, access-control and AV drawings that belong to your scope, together with device schedules, risers, specifications and addenda. Include pathway and responsibility notes, even when another contractor performs that work.
Your team stays in control. Verify source documents and continue your normal bid review.
Before you join
We are collecting interest from teams bidding structured cabling, security, access control and AV. Tell us which systems you handle; coverage will be defined and validated for each pilot.
Fire Alarm has its own planned review direction and dedicated page. If your company bids both, select both specialties in the request so we can understand your combined workflow.
The planned scope is reviewing changes in bid documents and showing their sources. Vendor programming, system commissioning and manufacturer-specific validation remain outside that scope.
Low Voltage · Planned
Low Voltage support is planned. Share your interest in a future pilot and the work your team bids.
A simple next step
Send a brief request from this page. We’ll review it and discuss availability, coverage, and terms before a pilot begins.
Early Access may miss changes. Keep your normal estimating and document review in place.
You can also email earlyaccess@revisionsignal.com directly.
