Keep plumbing scope changes connected to your bid.

A pipe-size note or fixture schedule revision can change more than a count. Review the affected location, material requirement and equipment connection together before updating your plumbing estimate.

Register interestView a real example
Your review. Your project data.

Keep your team in control.

RevisionSignal supports your judgment. It may miss changes, and a finding still needs your review.

Keep professional review in place.

Early Access starts in Shadow Review. Verify findings against the source and continue your normal review process.

Start with a conversation.

Describe your workflow in the access request. Leave out confidential drawings, specifications, and bid details.

Agree on data handling first.

Before sharing live files, confirm who can access them, which providers process them, and the retention and deletion terms.

A real Plumbing bid example

See what changed.
Know what to review.

HGTC GT Workforce Training Center

TD trench-drain fixture schedule

Addendum 3 · September 15, 2025

Manually reviewed example

RevisedTrench-drain model revisedTD · Fixture schedule

Before · Addendum 2P001

The final three model rows in the earlier P001 plumbing schedule. TD is the bottom row and lists Z664.

TD trench-drain model: Z664, in the bottom model-column row.

Before PDF · page 67 (opens in a new tab)

After · Addendum 3P001

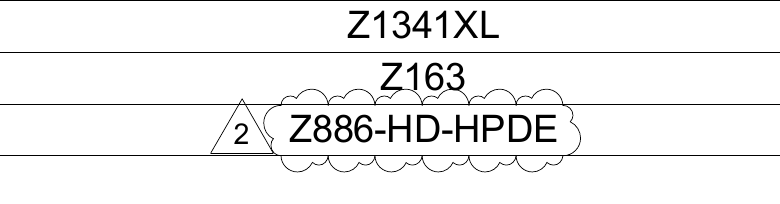

The final three model rows in revised P001. TD is the bottom row and now lists Z886-HD-HPDE inside the source revision cloud.

The same TD row now lists Z886-HD-HPDE.

After PDF · page 3 (opens in a new tab)

Red outline: selected change. Dashed outline: corresponding area before the change. Model-column detail: the bottom row is the TD trench drain. The black revision cloud is part of the source drawing.

Show source context

Read the surrounding source text. Open either crop at full size to zoom in on small text.

Before · Addendum 2P001

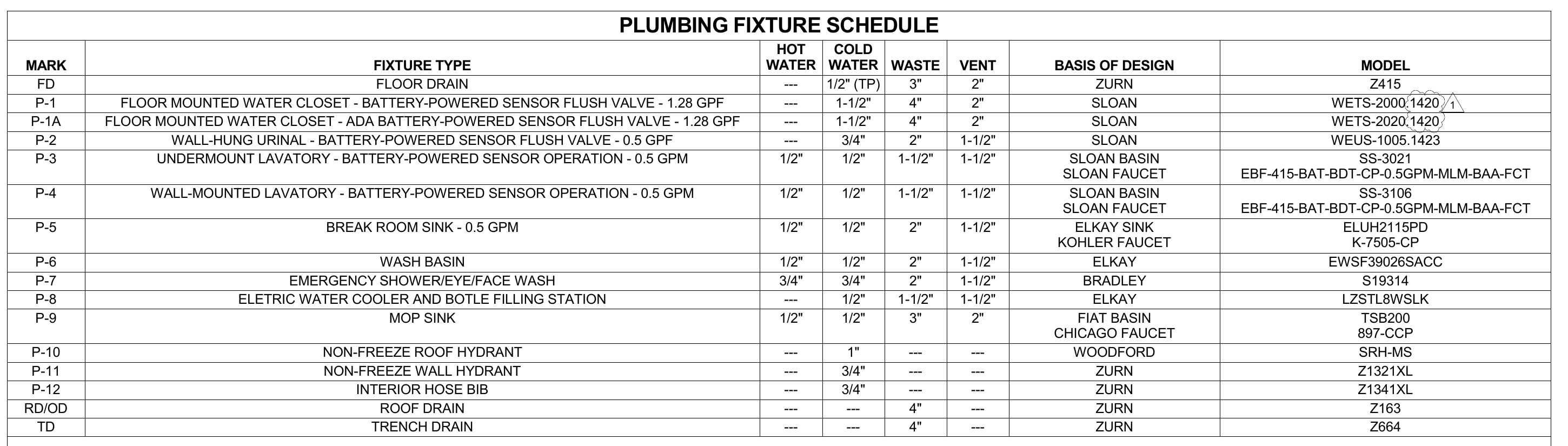

Complete earlier P001 Plumbing Fixture Schedule with column headings. The bottom TD row identifies a trench drain, 4-inch waste connection, Zurn basis of design and Z664 model.

The bottom TD row connects the trench-drain description to the Zurn Z664 model. The original column headings are included.

Open full-size source crop: Before, Addendum 2, P001 (opens in a new tab)

After · Addendum 3P001

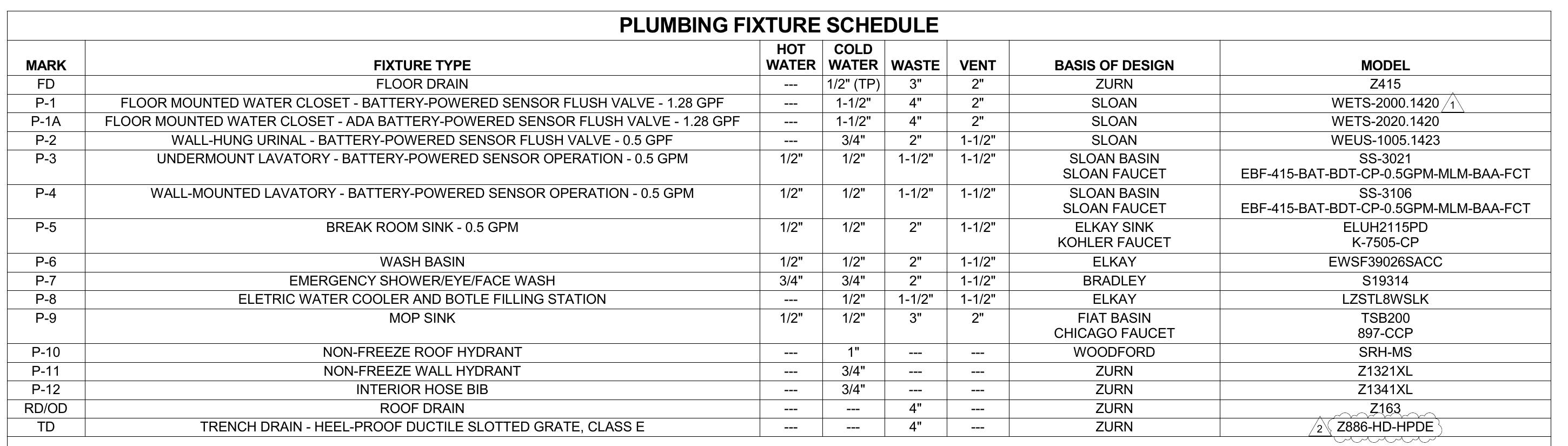

Complete revised P001 Plumbing Fixture Schedule with column headings. The bottom TD row specifies a trench drain with heel-proof ductile slotted grate, Class E, a 4-inch waste connection, Zurn and model Z886-HD-HPDE.

The same TD row adds the heel-proof ductile slotted grate, Class E, and changes the model to Z886-HD-HPDE, as printed in P001.

Open full-size source crop: After, Addendum 3, P001 (opens in a new tab)

  1. What changed

    The TD model changes from Z664 to Z886-HD-HPDE. The revised fixture description also specifies a heel-proof ductile slotted grate, Class E.

  2. Why it may matter

    The revised model and grate requirement may affect the supplier quote and installation allowance.

  3. What to review

    Recheck the trench-drain quote, grate requirement, and installation allowance against revised P001 and Addendum 3, question 61.

One manually reviewed change. Not an automated product result or a complete list of addendum changes.

Unaltered source crops · Horry-Georgetown Technical College bid archive (opens in a new tab) · Drawings © Croft & Associates; DWG Consulting Engineers.

Plumbing review scenarios

What a revision can change.

These scenarios describe the review workflow we are developing. They are not automated findings or a statement of currently supported detection coverage.

Pipe size and material

A changed diameter or material note can affect the pipe, fittings and installation assumptions used in the estimate.

Review in context

Read the full note and the applicable specification; the line on the plan may look unchanged.

Fixture and valve scope

Revised fixture tags, valve requirements or connection details can change the items you need to price.

Review in context

Compare the plan with the fixture schedule and detail references, including relocated or deleted items.

Pumps and water heaters

An equipment substitution may change the connection arrangement, accessory requirements or division of work.

Review in context

Check the equipment schedule, associated details and coordination notes before assuming the replacement is equivalent.

Start with the right documents.

Bring the original and revised plumbing plans, riser diagrams, fixture and equipment schedules, legends, specifications and issued addenda. Include scope notes that describe connections, demolition and work assigned to other contractors.

Your team stays in control. Verify source documents and continue your normal bid review.

Before you join

Plumbing review, explained.

Is plumbing review available today?

Plumbing support is planned. Send an interest request to discuss a future pilot; this does not activate an automated plumbing review service. We will discuss availability before requesting project files.

Are HVAC hydronic piping and fire sprinklers included?

Those scopes can overlap contractor boundaries, but they require their own review coverage. Describe the systems you bid when registering interest. Fire sprinkler support is not currently announced.

Will a drawing comparison catch every material change?

A drawing alone is not enough. Material and connection requirements can change in specifications or addendum text, so the proposed workflow includes those sources and keeps human verification in place.

Plumbing · Planned

Interested in Plumbing revision review?

Plumbing support is planned. Share your interest in a future pilot and the work your team bids.

A simple next step

Send a brief request from this page. We’ll review it and discuss availability, coverage, and terms before a pilot begins.

Early Access may miss changes. Keep your normal estimating and document review in place.

Request details

Your Plumbing request

Work email and at least one trade are required.

Your trade

Already selected for this page. Add other specialties if needed.

Include another trade
Add a review challenge (optional)

A general description is enough. Leave out confidential project details.

Your request is emailed to RevisionSignal and isn’t stored on this website. Please leave out confidential project details.

You can also email earlyaccess@revisionsignal.com directly.
